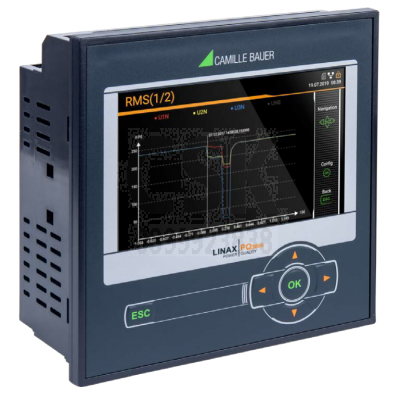

Power quality analysis

The device is intended to be used for a permanent power quality assessment according IEC 61000-4-30 Ed.3 in class A. The recorded events (voltage sag, voltage swell, voltage interruption, RVC, current swell, frequency change and homopolar voltage) serve both to prove that disturbances have occurred and to search for the origin of the disturbance in order to increase security of supply. Using the statistical voltage and current quantities, compliance with supply contracts or internal requirements can be verified. Assessment according EN 50160, IEC 61000-2-2/4/12, IEEE 519, GB/T or self-defined limits can be carried out after the measurement, corresponding conformity reports can be created via the device website (PQEasy-Report).

• Independent certification acc. IEC 62586-2 by Federal Institute of Metrology METAS
• Support for standardized, manufacturer independent PQDIF format acc. IEEE 1159.3
• Definable event recording duration: Up to 6 seconds for samples and 3 minutes for RMS values
• Event display via website with time zooming function and reading of values

Energy flow analysis

• Power mean-values with trend-analysis for preventing load-peaks
• Load profile storage with fluctuation range (min/max) per interval
• Active energy class 0.2S, Reactive energy class 0.5S (HT/LT, demand/delivery), configurable resolution
• Further mean-values and meters with selectable base quantity
