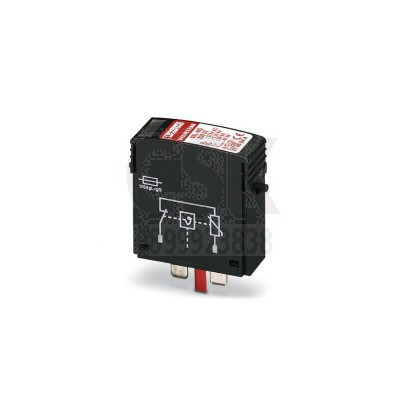

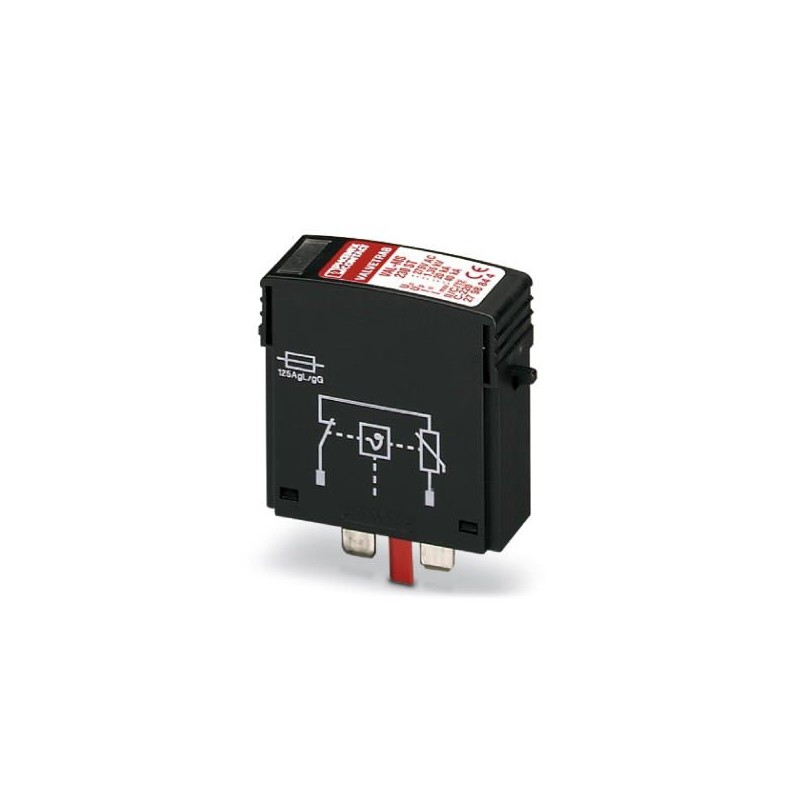

| Orderkey |
2798844 |
|---|
| Packing unit |
10 pc |
|---|
| Catalog page |
Page 59 (C-4-2017) |
|---|
| GTIN |
4017918073947 |
|---|
| Weight per Piece (excluding packing) |
41.500 g |
|---|
| Custom tariff number |
85363010 |
|---|
| Country of origin |
DE (Germany) |
|---|
| Height |
52.4 mm |
|---|
| Width |
17.5 mm |
|---|
| Depth |
55.3 mm |
|---|
| Horizontal pitch |
1 Div. |
|---|
| Degree of protection |
IP20 |
|---|
| Ambient temperature (operation) |
-40 °C ... 80 °C |
|---|
| Ambient temperature (storage/transport) |
-40 °C ... 80 °C |
|---|
| Altitude |
≤ 2000 m (amsl (above mean sea level)) |
|---|
| Permissible humidity (operation) |
5 % ... 95 % |
|---|
| Shock (operation) |
25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
|---|
| Vibration (operation) |
5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
|---|
| IEC test classification |
II |
|---|
|
T2 |
|---|
| EN type |
T2 |
|---|
| IEC power supply system |
TN |
|---|
|
TT |
|---|
| Mode of protection |
L-N |
|---|
|
L-PEN |
|---|
| Mounting type |
on base element |
|---|
| Color |
jet black RAL 9005 |
|---|
| Housing material |
PA 6.6 |
|---|
| Degree of pollution |
2 |
|---|
| Flammability rating according to UL 94 |
V-0 |
|---|
| Type |
DIN rail module, two-section, divisible |
|---|
| Number of positions |
1 |
|---|
| Arrester can be tested with CHECKMASTER from software version: |
From SW rev. 1.10 |
|---|
| Surge protection fault message |
optical |
|---|
| Nominal voltage UN |
240/415 V AC (TN) |
|---|
|
240/415 V AC (TT) |
|---|
| Nominal frequency fN |
50 Hz (60 Hz) |
|---|
| Maximum continuous voltage UC |
275 V AC |
|---|
| Residual current IPE |
≤ 0.45 mA |
|---|
| Standby power consumption PC |
≤ 120 mVA |
|---|
| Nominal discharge current In(8/20) µs |
20 kA |
|---|
| Maximum discharge current Imax(8/20) µs |
40 kA |
|---|
| Short-circuit current rating ISCCR |
25 kA |
|---|
| Voltage protection level Up |
≤ 1.35 kV |
|---|
| Residual voltage Ures |
≤ 1.35 kV (at In) |
|---|
|
≤ 1.1 kV (at 10 kA) |
|---|
|
≤ 1 kV (at 5 kA) |
|---|
|
≤ 0.9 kV (at 3 kA) |
|---|
| TOV behavior at UT |
335 V AC (5 s / withstand mode) |
|---|
|
440 V AC (120 min / safe failure mode) |
|---|
| Response time tA |
≤ 25 ns |
|---|
| Max. backup fuse with branch wiring |
125 A (gG) |
|---|
| Connection method |
pluggable |
|---|
| SPD Type |
4CA |
|---|
| Maximum continuous operating voltage MCOV (L-N) |
275 V AC |
|---|
| Nom. voltage |
230 V AC |
|---|
| Mode of protection |
L-N |
|---|
| Power distribution system |
Single phase |
|---|
| Nominal frequency |
50/60 Hz |
|---|
| Measured limiting voltage MLV (L-N) |
1910 V |
|---|
| Nominal discharge current In(L-N) |
20 kA |
|---|
| Standards/regulations |
IEC 61643-11 2011 |
|---|
|
EN 61643-11 2012 |
|---|
|
 |
|
