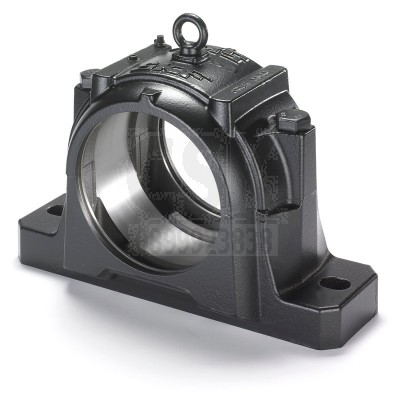

SNL3048 |
|
ต้องการสินค้าจำนวนกรุณาแจ้ง |
ASSOCIATED PRODUCTS
| Housing |
SNL 3048
|
| Labyrinth seal |
2 x TS 48/5.15/16
|
| End cover |
ETS 48
|
| Bearing (basic designation) |
22334 K
|
| Adapter sleeve | HA 2334 |
| Locating ring |
2 x FRB 10/360
|
DIMENSIONS
| da |
150.813 mm
|
Shaft diameter |
|---|---|---|
| Ca |
140 mm
|
Inside space length |
| Da |
360 mm
|
Spherical seat diameter |
| A |
290 mm
|
Base width |
| A1 |
240 mm
|
Flange width |
| ATS |
300 mm
|
Width across labyrinth seal |
| H |
434 mm
|
Complete housing height |
| H1 |
220 mm
|
Spherical seat centre height |
| H2 |
90 mm
|
Foot height |
| J |
540 mm
|
Distance between attachment bolts |
| J1 |
140 mm
|
Distance between attachment bolts |
| L |
640 mm
|
Overall length |
| N |
42 mm
|
Length of attachment bolt hole (radial) |
| N1 |
35 mm
|
Width of attachment bolt hole (axial) |
| s |
12 mm
|
Centreline of "fixed" bearing |
| ba |
min.94 mm
|
Distance bearing centre to shaft end |
|---|---|---|
| ba |
max.128 mm
|
Distance bearing centre to shaft end |
| bb |
89 mm
|
Distance bearing centre to shaft end |
| bc |
133.5 mm
|
Distance bearing centre to shaft end |
| J6 |
590 mm
|
Distance between dowel pins |
|---|---|---|
| N4 |
max.20 mm
|
Diameter of dowel pins |
BREAKING LOADS, HOUSING
| P0° |
3 100 kN
|
Breaking loads |
|---|---|---|
| P55° |
4 000 kN
|
Breaking loads |
| P90° |
1 900 kN
|
Breaking loads |
| P120° |
1 400 kN
|
Breaking loads |
| P150° |
1 300 kN
|
Breaking loads |
| P180° |
1 600 kN
|
Breaking loads |
| Pa |
1 000 kN
|
Breaking loads |
YIELD POINT, CAP BOLTS
| Q120° |
1 800 kN
|
Load carrying ability for cap bolts |
|---|---|---|
| Q150° |
1 040 kN
|
Load carrying ability for cap bolts |
| Q180° |
900 kN
|
Load carrying ability for cap bolts |
MASS
| Mass housing |
139 kg
|
MOUNTING INFORMATION
| Cap bolt, size |
M 24x160
|
|
| Cap bolt, rec. tightening torque |
350 N·m
|
|
| Appropriate attachment bolt, size | G |
30 mm
|
| Appropriate attachment bolt, rec. tightening torque |
1 310 N·m
|
|
| Eye bolt, size |
2 x M 20
|
|
| Initial grease fill, 20% |
1.8 kg
|
|
| Initial grease fill, 40% |
3 kg
|
