| Orderkey |
2817741 |
|---|
| Packing unit |
10 pc |
|---|
| Catalog page |
Page 58 (C-4-2017) |
|---|
| GTIN |
4017918148164 |
|---|
| Weight per Piece (excluding packing) |
66.500 g |
|---|
| Custom tariff number |
85366990 |
|---|
| Country of origin |
DE (Germany) |
|---|
| Height |
89.8 mm |
|---|
| Width |
17.6 mm |
|---|
| Depth |
51.5 mm (incl. DIN rail 7.5 mm) |
|---|
| Horizontal pitch |
1 Div. |
|---|
| Degree of protection |
IP20 (only when all terminal points are used) |
|---|
| Ambient temperature (operation) |
-40 °C ... 80 °C |
|---|
| Ambient temperature (storage/transport) |
-40 °C ... 80 °C |
|---|
| Altitude |
≤ 2000 m (amsl (above mean sea level)) |
|---|
| Permissible humidity (operation) |
5 % ... 95 % |
|---|
| Shock (operation) |
25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
|---|
| Vibration (operation) |
5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
|---|
| IEC test classification |
II |
|---|
|
T2 |
|---|
| EN type |
T2 |
|---|
| Mounting type |
DIN rail: 35 mm |
|---|
| Color |
jet black RAL 9005 |
|---|
| Housing material |
PA 6.6 |
|---|
| Degree of pollution |
2 |
|---|
| Flammability rating according to UL 94 |
V-0 |
|---|
| Type |

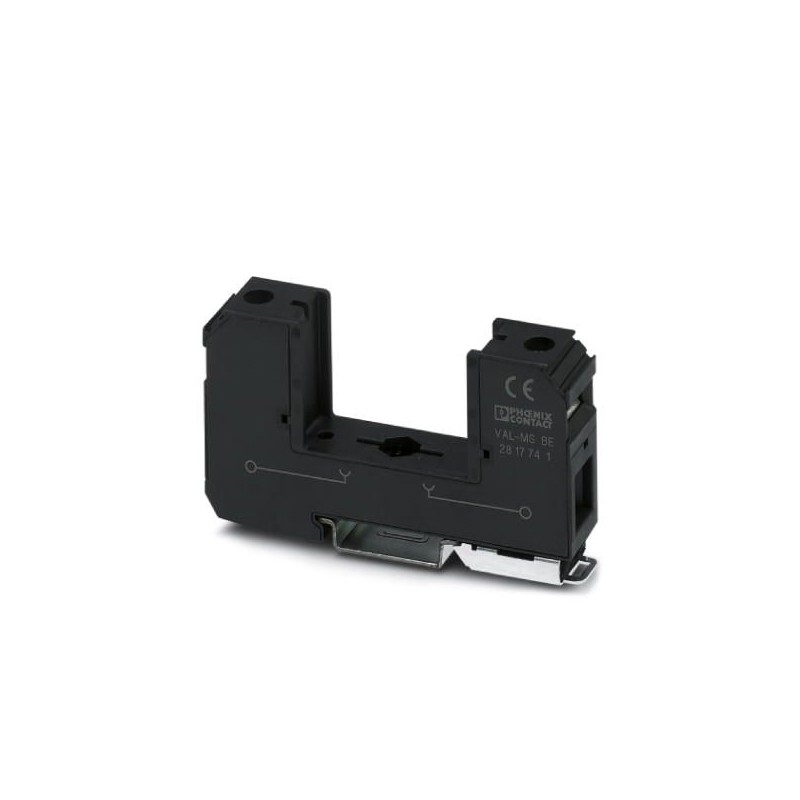

Base element, DIN rail mounting |
|---|
| Number of positions |
1 |
|---|
| Surge protection fault message |
none |
|---|
| Note |
For installation into a touch protected cabinet. For applications with UC> 500 V distances at the side and distances at the connection area must be minimum of 5 mm between different active parts including earthed parts. |
|---|
| Nominal frequency fN |
50 Hz (60 Hz) |
|---|
| Maximum continuous voltage UC |
600 V AC |
|---|
| Rated load current IL |
80 A |
|---|
| Short-circuit current rating ISCCR |
25 kA |
|---|
| Max. backup fuse with V-type through wiring |
80 A (gG) |
|---|
| Max. backup fuse with branch wiring |
125 A (gG) |
|---|
| Connection method |
Screw connection |
|---|
| Screw thread |
M5 |
|---|
| Tightening torque |
3 Nm (1,5 mm² ... 16 mm²) |
|---|
|
4.5 Nm (25 mm² ... 35 mm²) |
|---|
| Stripping length |
16 mm |
|---|
| Conductor cross section flexible |
1.5 mm² ... 25 mm² |
|---|
| Conductor cross section solid |
1.5 mm² ... 35 mm² |
|---|
| Conductor cross section AWG |
15 ... 2 |
|---|
| Connection method |
Fork-type cable lug |
|---|
| Conductor cross section flexible |
1.5 mm² ... 16 mm² |
|---|
| SPD Type |
4CA |
|---|
| Nom. voltage |
690 V AC |
|---|
| Tightening torque |
4 lbf-in. |
|---|
| Conductor cross section AWG |
30 ... 14 |
|---|
| Conductor cross section AWG |
10 ... 2 |
|---|
| Tightening torque |
30 lbf-in. |
|---|
| Standards/regulations |
IEC 61643-11 2011 |
|---|
|
EN 61643-11 2012 |
|---|
|
 |
|
