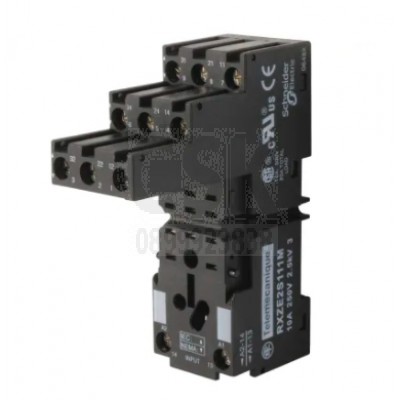

RXZE2S111M Relay Socket 11 Pin ซ็อกเก็ต รีเลย์ Schneider
สถานะของสินค้า : สินค้าพร้อมส่ง
120 บาท
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Socket
|
|
| contact terminal arrangement |
Separate
|
|
| product compatibility |
Plug-in relay RXM with 3 C/O contact
|
|
| shape of pin |
Flat
|
|
| device short name |
RXZ
|
|
| sale per indivisible quantity |
10
|
| [Ith] conventional free air thermal current |
10 A
|
|
|---|---|---|
| [Ue] rated operational voltage |
< 250 V
|
|
| connections - terminals |
Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
|
| tightening torque |
< 1 N.m for M3 screw(s)
|
|
| fixing mode |
By screw (panel)
Clip-on (35 mm symmetrical DIN rail) |
|
| marking |
CE
|
|
| width |
27 mm
|
|
| net weight |
0.066 kg
|
| standards |
IEC 61984
|
|
|---|---|---|
| product certifications |
UL
Lloyd's CSA |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| dielectric strength |
2500 V
|
| Package 1 Weight |
0.061 kg
|
|
|---|---|---|
| Package 1 Height |
0.610 dm
|
|
| Package 1 width |
0.270 dm
|
|
| Package 1 Length |
0.750 dm
|
